PTC heating element
    Publish time 2011-06-20 09:54

PTC heater element which is madeof PTC pellet,kapton and wires,aluminium plate,can supply constant heat.

PTC heating element

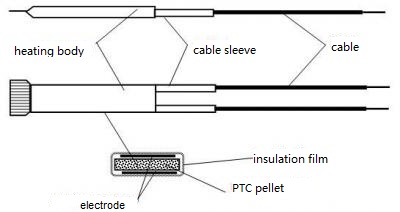

PTC heater with insulation film is composed of PTC stone, electrode,lead and insulation film,it highlights in:

1.no thermostat is required,

2.rapid heatup,

3.automatic control of temperature,

4.longlife

5.safety

Applications:
It applies to Heater Fan, Hair Curler, Drying Machines, Hair Dryer, Hot melt glue gun, Foot warmer, diesel / fuel heater, Iron, hair straightener, electronic appliances etc.

Normal Size:

Length (mm) Width (mm) Thickness (mm) Length (mm) Width (mm) Thickness (mm)
15 10 2.8~3.6 48 34 2.8~3.6
16 11 2.8~3.6 50 6 2.8~3.6
18 6 2.8-3.6 50 7 2.8~3.6
20 12 2.8~3.6 52 8 2.8~3.6
24 6 2.8~3.6 52 10 2.8~3.6
24 7 2.8~3.6 55 15 2.8~3.6
24 10 2.8~3.6 60 8 2.8~3.6
24 15 2.8~3.6 60 15 2.8~3.6
24 30 2.8~3.6 64 10 2.8~3.6
24 45 2.8~3.6 64 12 2.8~3.6
30 24 2.8~3.6 70 6 2.8~3.6
34 28 2.8~3.6 70 8 2.8~3.6
35 4 2.8~3.6 70 10 2.8~3.6
35 6 2.8~3.6 70 12 2.8~3.6
38 8 2.8~3.6 70 15 2.8~3.6
35 10 2.8~3.6 70 20 2.8~3.6
35 12 2.8~3.6 70 22 2.8~3.6
35 13 2.8~3.6 70 24 2.8~3.6
35 16 2.8~3.6 70 30 2.8~3.6
40 16 2.8~3.6 90 8 2.8~3.6
48 10 2.8~3.6 90 13 2.8~3.6
48 15 2.8~3.6 150 30 2.8~3.6

Notice：
1. Working Voltage range: 6V~240V; Insulating Voltage: 3750V/1sec;
2. Surface Temperature: 60℃~300℃,temperature tolerance is: ±5℃
3. Parallel connection is necessary for two or more PTC connection

4. Customized PTC heater is available upon specification of size,voltage,power,surface temperature,lead length.
