PTC pipe heater
    Publish time 2013-11-19 11:07

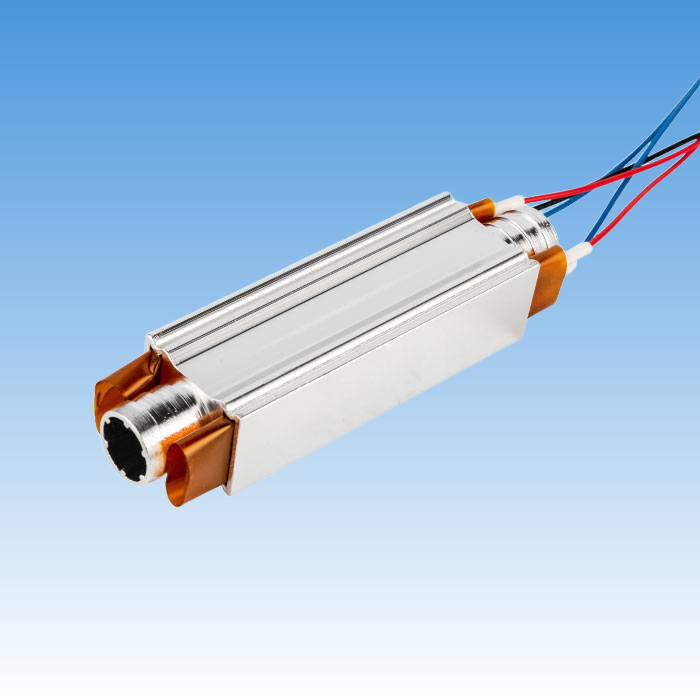

PTC pipe heater

  Different from PTC immersion heater which is immersed into liquid to heatup the liquid, our PTC pipe heater is heating the liquid which is flowing through the pipe, and footbath which uses this type of pipe heater gives people more comforts with water flowing in the footbath than traditional footbath whose water is still.

  Also this PTC pipe heater can be used for other purpose.





  item




  model




  inner diameter×thickness




  voltage/wattage




  Drawing




  1




  JX5G-1




  Φ10×19.4mm




  110-240V
 300-400W














  2




  JX5G-2




  Φ13×22.7mm




  110-240V
 400-500W














  3




  JX5G-3




  Φ20×36.8mm




  110-240V
 600-1000W














  4




  JX5G-4




  Φ20×37.4mm




  110-240V
 600-1000W














  5




  JX5G-5




  Φ13×28.2mm




  110-240V
 600-1000W
