PTC heater for Split air conditioner
    Publish time 2011-06-20 09:58

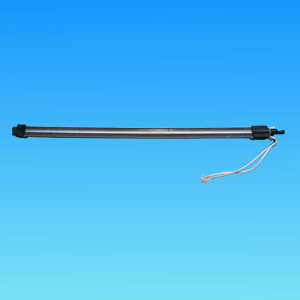

PTC heater for Split air conditioner

           PTC heaters for split air conditioners are insulated by specific materials (rectangle aluminium tube for JX series) and connected with wave aluminium. This PTC heater advantages in high insulation strength, rapid heat up and safety operation.   Besides, we also provide customized products.

Parameters:

Item
Parameters
Rated Voltage (V)
12~380
Rated Frequency (Hz)
50(60)Hz
Size range of radiator (mm)
300~700
Rated power range (W)
100~1200
Power tolerance (%)
+5~-10
Max initial current (A)
1.5x rated amp
Insulation resistance (MΩ)
>=100
Electric strength (V/min)
1500
PTC withstand voltage (V)
450(500)
Power decay rate (%)
<=10%/1000h
Max surface temperature (Celsius)
270

Normal type:

                 TYPE
POWER(W)
SIZE(mm)
MZFR-J0658
600
576x24x15
MZFR-J0753
720
533x24x15
MZFR-J07X49
660
493x24x15
MZFR-J08X42
750
415x21x15
MZFR-J09X59
850
586x24x15
MZFR-J09X52
900
521x24x15
MZFR-J10X57
1000
572x24x15
