Electric Vehicle PTC air heater
    Publish time 2021-08-26 14:21

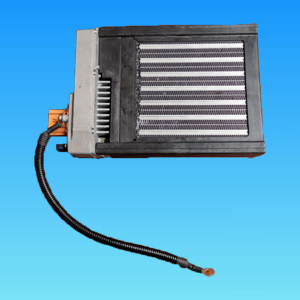

High Voltage PTC air heater for elecrtric vehicle.

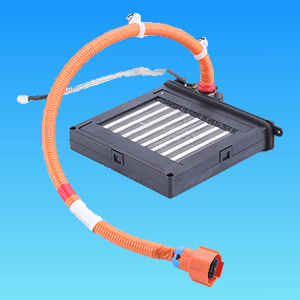

Electric Vehicle PTC air heater

With focus on environmental protection, electric vehicle development has gained tremendous international attention and are getting into automotive market. Automobiles with internal combustion engines use engine waste heat for heating., they need additional equipment as their main heating source. High Voltage Positive Temperature Coefficient (PTC) Heaters which are capable of achieving the required heating power, efficiency, and reliability is considered to be best choice.


Technical data:

   Storage temperature:-40~120

   Working ambient temperature:-40~+105
   Control Voltage: ~16VDC or 18~32VDC

   Output control: adjust duty ratio with PMW to control IGBT of PTC heater

   Communication: CAN/LIN/PWM/EN

   Insulation resistance: 50MΩ1000VDC

Protection Class:IP54/IP67

Protection: high voltage over-voltage protection, Low voltage under voltage protection, over -temperature protection, Low voltage reverse-connection protection,Short-circuit protection etc

Power:1000~5000W@72VDC~738VDC

Protection ClassIP54/IP67

Insulation breakdown voltageAC (Umax*2+1000V/60s
Insulation resistance:≥500MΩ
1000VDC

Protection: Sensor over temperature protection, fuse over temperature protection


Two models of PTC air heaters are designed .

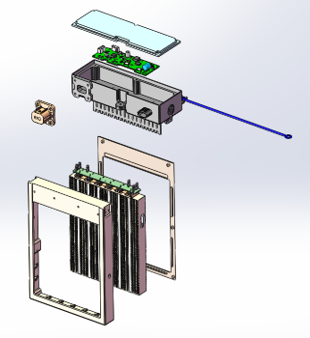

one is with controller.

NO.

Description

Material

1

Upper shell

PPA-GF30

2

 PCB

FR-4

3

LV   connector

PA66

4

HV   connector

PA66

5

Upper

PPA-GF30

6

Heater   element

PTC

7

Lower base

PPA-GF30

8

Lead   wire

cu-ETP

9

Lower   shell

Die-casting   aluminum

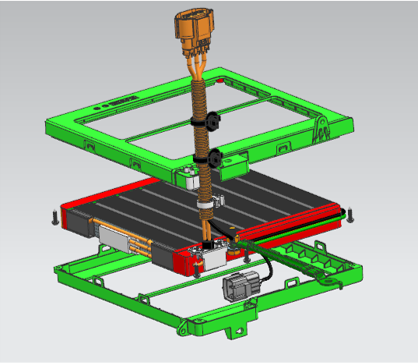

and the other without controller:


NO.

Description

Material

1

LV   cable hjarness

PA66

2

HV   cable harness

PA66

3

Upper

PPA-GF30

4

Heater   element

PTC

5

Lower base

PPA-GF30

6

sealant


7

Lead

cu-ETP

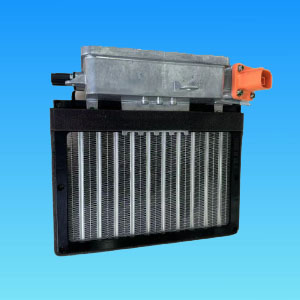

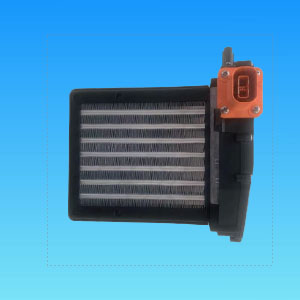

Model APTC-01

Rated Voltage(V) 330

Voltage Range(V) 200~470

Rated Power(W) 2500(+5%~-10%)@4.5m/s,Tin=0℃

Controller Low Voltage(V) 9~16

Control Mode LIN

Overall Dimensions (Length * Width * Height) 174.2*151.8*28 mm

Controller size (Length * Width * Height) 184*89.8*32.5mm

frontal area 145.8*120 mm

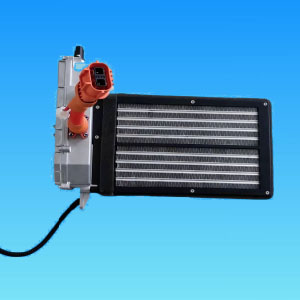

Model APTC-02

Rated Voltage(V) 350

Voltage Range(V) 210~470

Rated Power(W) 5000(0~+10%)@4.5m/s,Tin=-20℃

Controller Low Voltage(V) 9~16

Control Mode LIN

Overall Dimensions (Length * Width * Height) 256.5*160*26.9mm

Controller size (Length * Width * Height) 209.3*92*50mm

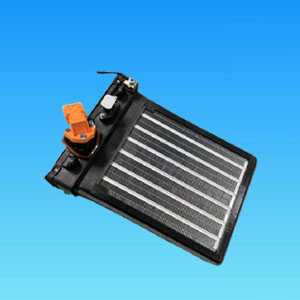

Model APTC-03

Rated Voltage(V) 350

Voltage Range(V) 210~450

Rated Power(W) 4500(-5%~+10%)@3.1m/s,Tin=-10℃

Controller Low Voltage(V) 9~16

Control Mode LIN

Overall Dimensions (Length * Width * Height) 240*190*30 mm

Controller size (Length * Width * Height) 213*73*41mm

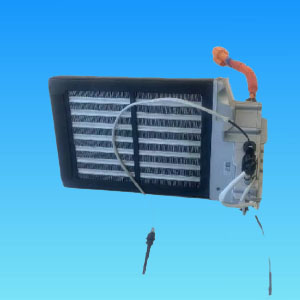

Model APTC-04

Rated Voltage(V) 394.2

Voltage Range(V) 270~453.6

Rated Power(W) 4500(+5%~-10%)@4.5m/s,Tin=25℃

Controller Low Voltage(V) 9~16

Control Mode CAN

Overall Dimensions (Length * Width * Height) 236.9*169*28 mm

Controller size (Length * Width * Height) 145.9*122.5*76.3mm

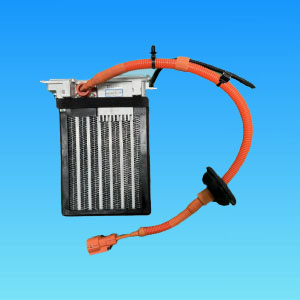

Model APTC-05

Rated Voltage(V) 315

Voltage Range(V) 190~470

Rated Power(W) 3200(0~+20%)@4.4m/s,Tin=0℃

Controller Low Voltage(V) 9~16

Control Mode LIN

Note: Please refer to the drawing for the specific parameters.

Overall Dimensions (Length * Width * Height) 224.5*166*30 mm

Controller size (Length * Width * Height) 210.5*105*43.2mm

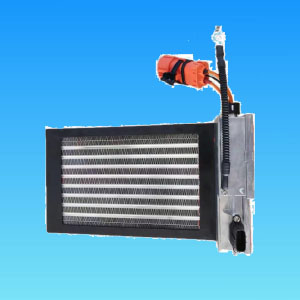

Model APTC-06

Rated Voltage(V) 350

Voltage Range(V) 200~460

Rated Power(W) ≥5000@300CMH,Tin=0℃

Controller Low Voltage(V) 9~16

Control Mode LIN

Overall Dimensions (Length * Width * Height) 242.5*155*26 mm

Controller size (Length * Width * Height) 190*85*36.5mm


Model APTC-07

Rated Voltage(V) 602

Voltage Range(V) 350-800

Rated Power(W) 5200(0~+10%)@4.5m/s,Tin=25℃

Controller Low Voltage(V) 9~16

Control Mode LIN

Overall Dimensions (Length * Width * Height) 236*175*30mm

Controller size (Length * Width * Height) 213.8*91.6*43mm

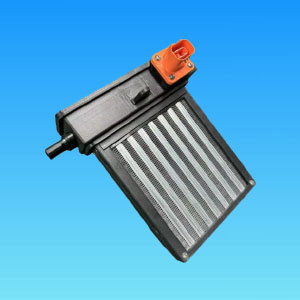

Model APTC-08

Rated Voltage(V) 630

Voltage Range(V) 400~880

Rated Power(W) 2500(+10%~-5%)@4.5m/s,Tin=0℃

Controller Low Voltage(V) 9~16

Control Mode LIN

Overall Dimensions (Length * Width * Height) 169*151*32mm

Controller size (Length * Width * Height) 195.2*111.2*46.9mm

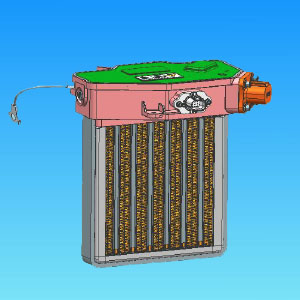

Model APTC-09

Rated Voltage(V) 650

Voltage Range(V) 450~900

Rated Power(W) ≥2800@3.8m/s,Tin=-10℃

Controller Low Voltage(V) 9~16

Control Mode CAN

Overall Dimensions (Length * Width * Height) 170*160*30 mm

Controller size (Length * Width * Height) 190*113*43mm

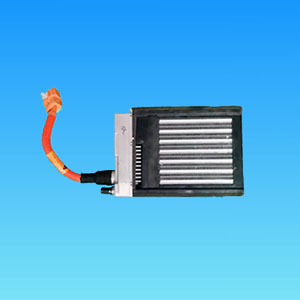

Model APTC-10

Rated Voltage(V) 333

Voltage Range(V) 200~430

Rated Power(W) 3500(+5%~-10%)@4.5m/s,Tin=25℃

Controller Low Voltage(V) 9~16

Control Mode CAN

Overall Dimensions (Length * Width * Height) 225*186*37 mm

Controller size (Length * Width * Height) 171.8*55.8*35.5 mm

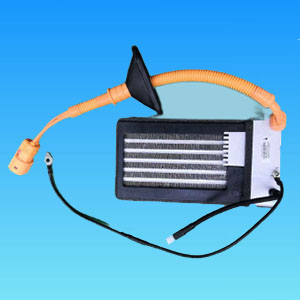

Model APTC-11

Rated Voltage(V) 328.5

Voltage Range(V) 252~378

Rated Power(W) 3000(+5%~-10%)@6.5m/s,Tin=20℃

Controller Low Voltage(V) 9~16

Control Mode LIN

Overall Dimensions (Length * Width * Height) 210*125*30 mm

Controller size (Length * Width * Height) 144*69.25*43mm


Some models with controllers:

Model

Voltage

Power

Air   speed

Breakdown   voltage

Insulation   resistance

Communication

Dimensions

SQ—E2&EP33

405V

5.5KW

4.5m/s

2700VDC/1min/2mA

≥500MΩ

CAN

277*190*77mm

RC—QI/SK

330V

4.5KW

4.5m/s

1800V/1s/10mA

≥100MΩ

EN

20/*197*40mm

ZD—ZD3

144V

3.3KW

6.5m/s

1500V/1min/10mA

≥50MΩ

PWM

252*138*76mm

YQ—X40EV

350V

3.5KW

4.5m/s

1800V/1min/10mA

≥100MΩ

LIN   2.1

329*147*2090px

QT—EV11

350V

3.5KW

4.5m/s

1800V/1min/10mA

≥100MΩ

LIN2.1



305*120*99.5mm

BYD—SA3HE

394.2V



4.5KW

4.5m/s

2000V/1min/5mA

≥50MΩ

CAN

303*169

JH—IEV432

333V

4.5KW

4.5m/s

1800V/1min/10mA

≥50MΩ

CAN

260*186*37mm

CC—EC01

328.54V

3KW

6.5m/s

1800V/1min/10mA

≥50MΩ

LIN2.1

254*125*69mm

JAC—JV01

333V

4.5KW

4.5m/s

1500V/1min/10mA

≥50MΩ

CAN

260*186*37mm

JAC—EVS4

333V

3.5KW

4.5m/s

1500V/1min/10mA

≥50MΩ

CAN

260*186

JAC—IEV7T

333V

3.5KW

4.5m/s

1800V/1min/10mA

≥500MΩ

CAN

260*168*37mm

JAC—EV7S

333V

3.5KW

4.5m/s

1500V/1min/10mA

≥50MΩ

CAN
