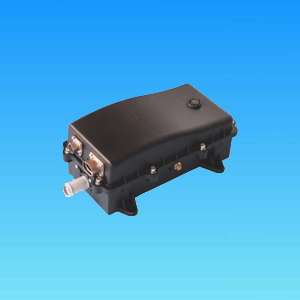

DE  series PTC coolant heaters are designed for battery pack warmng and for cabin heating.

Workiing voltage:120-900V

DE  3-7KW    overal dimensions: 200*118*98mm   fixing hole:134.5*125mm

DE 7-10KW    overal dimensions:233*128*105.5mm   fixing hole:166.5*135mm

DE 10-14KW  overal dimensions:269*147*108mm   fixing hole:193.5*154.8mm

DE 14-20KW  overal dimensions3123*165*110.5mm   fixing hole:245.5*172mm

Control method: CAN BUS communication or PWM

Insulation resistance: DC1000V  >500M Ω

Breakdown Voltage: AS2550V/min leakage current:<15mA

Models:

60V 3KW

80V  3KW

96V 3KW

350V 3KW

600V 3KW

350V 5KW

300V 7KW

600V 10KW

394V 13KW

600V 14KW

600V 20KW

760V 20KW

Baud rate:250K or 500K, standard frame of extended frame.

DE series PTC coolant water heater can be made upon your specific requirements.
