PTC enclosure heater RC016
    Publish time 2019-07-17 21:34

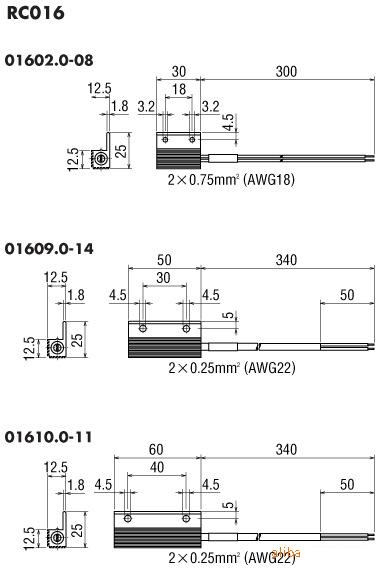

PTC enclosure heater RC016

    RC016 series PTC Semiconductor heaters are designed to prevent condensation and ensure a minimum operating temperature in small enc

   Technical Data:





  Operating Voltage:





  120-240V





  Heating element:





  PTC resistor, self-regulating and temperature limiting





  Heater body:





  Aluminium, anodised





  Mounting:





  Screw fixing





  Fitting position:





  Vertical





  Working temperature:





  -40 to 70℃





  Protection class:





  IP32/double insulation




 Operation with voltage lower than 140V  AC/DC reduces heting performance by approximately 10%.











  Code





  Power





  Max Ia





  Surface Temp





  Connection





  Weight





  01602.0-00





  8W





  2.0A





  150℃





  2XAWG18 silicon





  20g





  01609.0-00





  10W





  2.5A





  155℃





  2XAWG22 silicon





  30g





  01610.0-00





  13W





  3.0A





  170℃





  2XAWG22 silicon





  40g
